completed

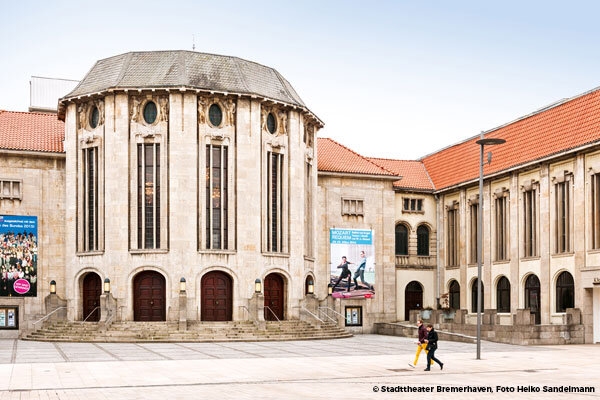

Bremerhaven, Germany
| Project start: | 10/1997 |
| Completion: | Grand theatre 12/2000 Small theatre 08/2007 |
| Project type: | Renovation |
| Venue type: | Drama theatre, Music theatre, Ballet theatre |
| Seats: |
Grand theatre: 685 seats |
| Our services: |
Schematic design, design development, construction design, tender documents and construction site supervision for stage machinery, stage lighting and electroacoustic, video system, stage management system, complete heavy current engineering |
| Contact: | Client: Municipal real estate company „Städtische Grundstücksgesellschaft Bremerhaven mbH“ |
Grand theatre:
Renewal of stage machinery including:
Renewal of stage lighting system including:
Renewal of electroacoustic system including:
Renewal of heavy current system including:
- Renewal of the steel structure including grid level, level of pulleys, working galleries and catwalks
- 33 powered fly bars, payload: 350kg, v = 0 - 1,2 m/s
- 8 point hoists with movable wire rope output, payload: 250kg, v = 1,2 m/s
- 2 lateral fly bars
- 2 lighting hoists, v = 0 - 0,3 m/s
- 1 lighting hoist, payload: 1500kg, v = 0 - 0,3 m/s
- 1 proscenium bridge
- 2 proscenium towers
- 2 lighting hoists below the galleries
- 5 side stage hoists
- 5 backstage hoists
- 1 apron stage hoist
- 1 house curtain, Greek (traveller) and German (guillotine) opening styles
- 1 scrim curtain, 1 acoustic curtain
- Complete technical safety equipment, including safety curtains and smoke hatches
- Total renewal of the stage flooring
- 4 double-deck stage platforms 12m x 3m
- 1 side stage compensating lift for the stage wagon 12m x 12m
- 1 stage wagon with turntable 12m x 12m, Ø 11,5 m
- 2 stage wagons 12m x 3m
- 1 side stage compensating lift 12m x 12m
- 1 movable trap lift
- 2 orchestra pit lifts
- Complete electric and electronic layout of the centralized control system including main and secondary control consoles for all drives of the overstage and understage machinery as well as the safety-related equipment.
- 2 digital lighting consoles with 2 monitors each and back-up system
- Secondary consoles as touchscreen panels
- Digital dimmer system with 484x5kW modules, placed in 3 dimmer rooms.
- Complete distributions
- DMX-512 and Ethernet network
- Total renewal of installation including connection boxes
- Retrofit of the existing spotlight equipment
- 2 digital mixing panels
- 2 amplifying stations
- Complete loudspeaker system in the auditorium
- Video- and microport systems
- Stage management system with complete P.A. and emergency call for the whole building
- Total renewal of installation including connection boxes for audio
- New central low voltage main distribution board with all subsequent sub-distribution boards
- Fire alarm system
- Telephone system
- Total renewal of installation
Small theatre:
Renewal of stage machinery including:
Renewal of stage lighting including:
Renewal of electroacoustic system including:
- Support structure for overstage machinery
- 6 shaft hoist systems, payload: 1,5 kN, v = 0,5 m/s
- 2 shaft hoist systems (lateral fly bar), pay load: 1,5 kN, v = 0,5 m/s
- 1 main curtain (Greek (traveller) opening style)
- 1 backdrop storage
- Complete proscenium construction
- Various spotlight brackets in the stage and auditorium area
- Complete electrical and electronic system with main and secondary consoles of the aforementioned installations
- Extension of existing lighting consoles by 60 electric circuits
- Radio remote control
- New production table
- Printer and screen
- Manual secondary console
- Complete dimmer system, 72 electric circuits with 2,5kW each
- Special distributions, main distribution board for stage lighting, auditorium light and DMX/Ethernet distribution
- Total renewal of installation including connection boxes
- New spotlight equipment, 60 spotlights
- Digital audio mixing panel, with 16 analog and 8 digital channel inputs
- Notebook as remote control
- 2 distribution racks 19“
- Complete PA-system in auditorium and stage areas
- Video network infrastructure
- Digital stage management system, including cue light system, paging and emergency call system for the whole building, mobile intercom stations, mobile stage management console
- Various playback devices: CD, DVD, MD and microphones
- Complete installation including connection boxes for audio
Phase 1
Design
Phase 2
Construction
completed
Phase 3
Handover
