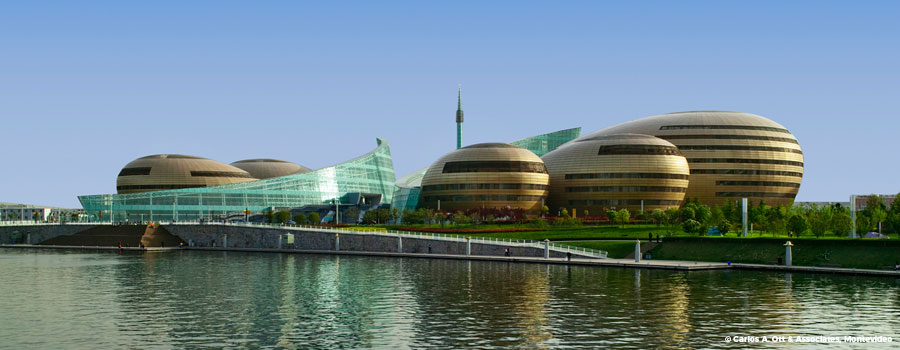

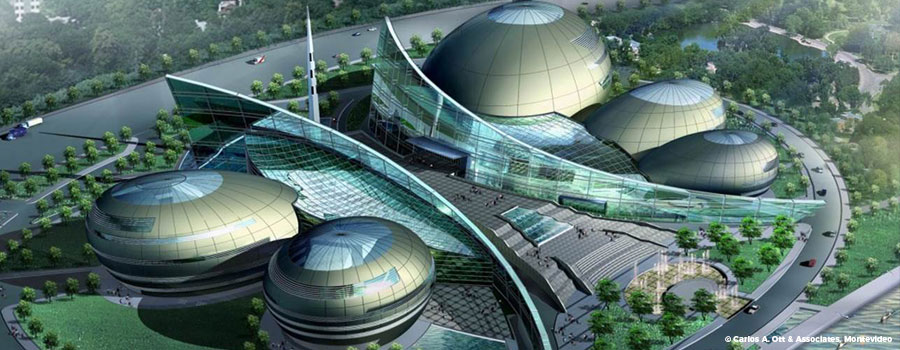

Henan Art Center

Zhengzhou, China

Project start: 02/2003
Completion:

09/2005
Construction type: New building
Venue type:

Opera house, Multifunctional hall, Concert hall, Arts centre
Seating capacity: Grand theatre: 1820 seats
Concert hall: 800 seats
Multifunctional theatre: up to 380 seats
Our services:

Complete design and tender documents for stage machinery, stage lighting and electroacoustic systems including video system and stage management system
Contact:

Architect:   Carlos A. Ott & Associates, Montevideo, OTT/PPA Client:  Carlos A. Ott & Associates, Montevideo, OTT/PPA






Phase 1 Design

completed

Phase 2 Handover

completed

Design of stage machinery including:



  • Steel structure incl. grid level, level of pulleys, working galleries and catwalks
  • 56 powered fly bars, payload: 10 kN, v = 1,5 m/s
  • 12 point hoists, payload: 5 kN, v = 0,5 m/s
  • 4 lighting hoists, 8 movable side lighting ladders
  • Technical proscenium, house curtain, scene-changing curtains
  • Safety curtain
  • 2 orchestra lifts
  • 6 double-deck stage platforms, with dimensions 18m x 3m
  • 1 backstage wagon with turntable, with dimensions 18m x 18m
  • 12 stage wagons, with dimensions 18m x 3m
  • Various compensating platforms
  • 2 trap lifts
  • Complete electric and electronic layout of the centralised control system including main and secondary control consoles
  • Steel structure incl. grid level, level of pulleys
  • 8 powered fly bars, payload: 5 kN, v = 0,2 m/s
  • 6 point hoists, payload: 1,5 kN, v = 0,2 m/s
  • 1 lighting hoist
  • Scene-changing curtains
  • 1 stage platform incl. seating storage, area: 12m x 5,3m
  • 7 auditorium lifts for reconfiguration of the auditorium space
  • 12 telescopic seating wagons
  • Complete electric and electronic layout of the centralized control system including main and secondary control consoles

Design of stage lighting system

Design of the electroacoustic system and video system

Design of the paging system and stage management systems
